Home>Two Post>F9M/F10M/F12M | 9000LBS./10000LBS./12000LBS.

F9M/F10M/F12M | 9000LBS./10000LBS./12000LBS. Single-Side Manual Release Two-Post

Share:
Product Image

EAE

  • 74 3/4"

    Max Lifting Height

  • 3 3/4"

    Min Height

  • 125 9/16"

    Inside Column

  • 55s

    Lifting Time

Details
Accessories
Technical Data
Description
Overall Dimension
Brochure
Cases

MODEL NO.

F9M/F10M
Lifting Capacity 9000LBS.
Max Lifting Height
74 3/4"(1900mm)
Min Height
3 3/4" (95mm)
Overall  Height
111 5/16"+ 9 7/16" (2827mm+240mm)
Drive-through width
100 11/16"(2558mm)
Lifting Time
≈55S
Capacity of Motor
2.2kW
CE certification
√
Electricity Supply
According To Customer Needs



·Simply push one button to engage the mechanical safety locking unit.

·Durable cylinders in each column with anti-surge valves.

·Standard door protection pads to prevent possible damage to the dooropened without caution.
·Pre-fixed hydraulic pressure prevents overloading operation.
·Standard column curtain.
·24V safe control system.

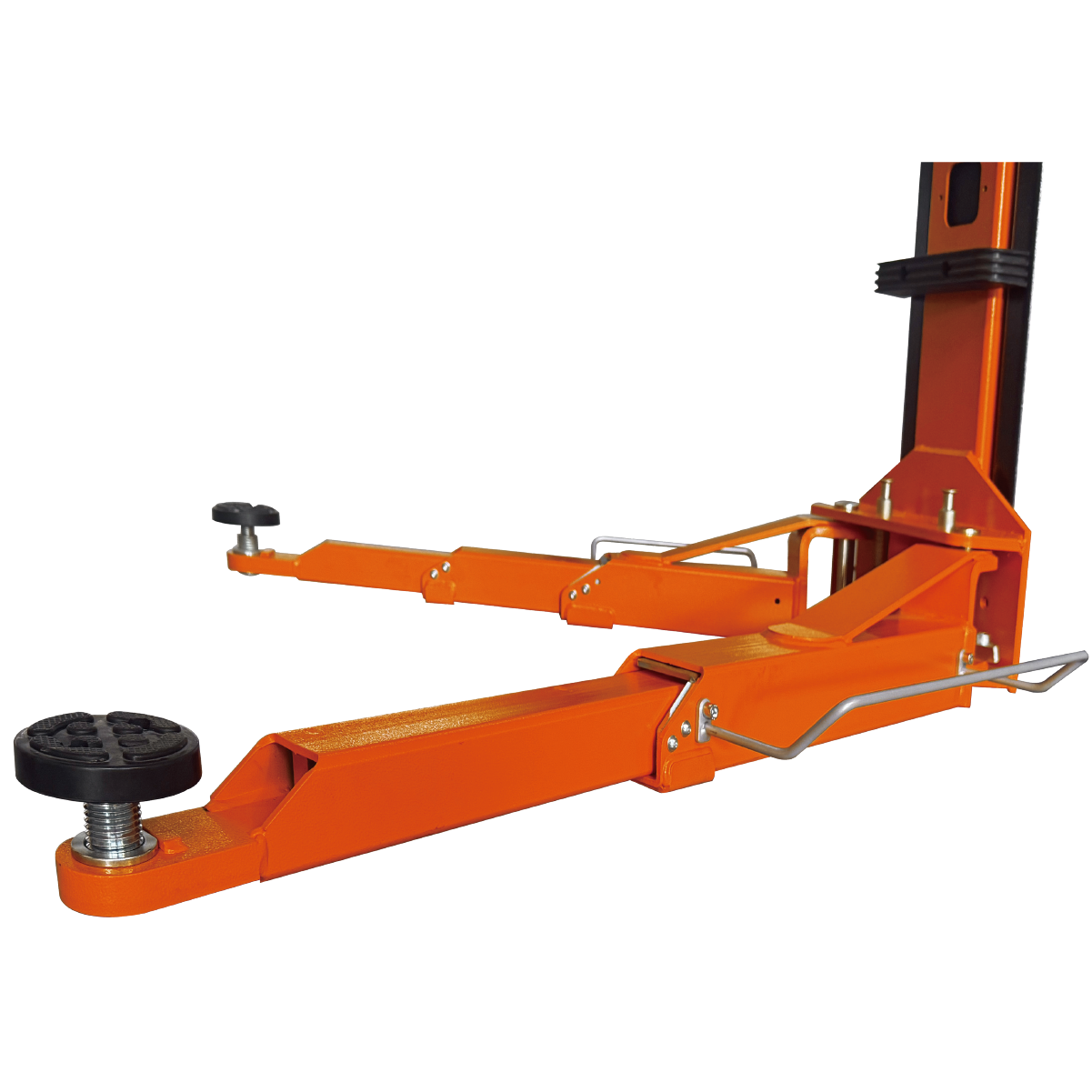

·3-stage short arm and 2-stage long arm.


Other Models in the Same Series
